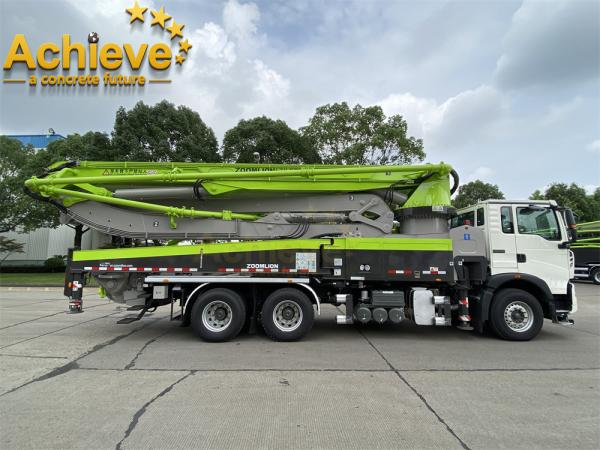

Reconditioned Zoomlion 47X-5RZ Concrete Pump Truck Pump Machine PUTZMEISTER

Product Categories

Achieve Innovations (Changsha) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Reconditioned Zoomlion 47X5RZ Concrete Pump Truck Pump Machine PUTZMEISTER
Brand: ZOOMLION
Price: 400 USD

Add to Cart

Max. Theor. output m³/h	120/70
Max. Theor. concrete output Pressure MPa	7/11
Rated working pressure MPa	35
Pumping frequency min^-1	22/13
Hopper capacity L	550
Filling height mm	1540
Hydraulic system type	Close loop
Distribution valve	S valve
Oil cylinder dia.×stroke mm	φ130×2100
Concrete cylinder dia.×stroke mm	φ230×2100
Hydraulic oil cooling	风冷 Air cooling
Recommended concrete slump cm	12~23
Max. aggregate dimension mm	40
Structure type	47X-5RZ
Placing depth m	47
Horizontal distance m	42.7
Placing depth m	33.4
Slewing angle	±270°
Boom number	5
The length of boom section mm	9380/8130/7930/8610/8950
Sections folding angle	90°/180°/180°/250°/180°
Pipe diameter mm	125
End hose length mm	3000
Min. height of opening placing boom mm	9455
Outriggers span (front×rear×side) mm	9230×9680×9385

Model		Unit	47X-5RZ
Pump Unit	Maximum theorical output	m3/h	180/120
	Maximum pressure on concrete	bar	80/120
	Conc. cylinders (diam. x stroke)	mm	260x2100
	Concrete hopper capacity	L	600
	Hydraulic circuit		Open
Boom Section	Maximum vertical reach	m	47
	Maximum horizontal distance	m	42.7
	Minimum unfolding height	m	9.7
	Section numbers		5
	Rotating angle		±270°
	End hose lenght	m	3
