Name: Used Concrete Trailer Pumps ZOOMLION HBT8016174RSU 7540kg
Brand: ZOOMLION
Price: 1 USD

Add to Cart

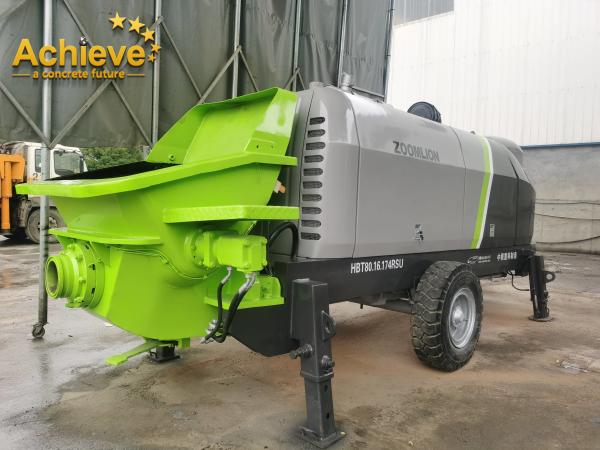

ZOOMLION HBT80.16.174RSU Concrete Stationary Pump

Items		Units	Parameters
Items		Units	80.16.174RSU
Whole performance of pump	Max. theo. concrete output (L./H.)	m3/h	85/55
	Max.concrete pumping pressure (H. /L.)	MPa	16/9
	Distributing valve style	/	S valve
	Concrete cylinder diameter×stroke	mm	φ200×1800
	Hopper capacity×feeding height	L×mm	600×1400
	Outlet diameter	mm	φ180
Power system	Diesel engine model	/	BF6M1013EC
	Rated power	kW	174
	Rated speed	r/min	2300
Hydraulic system	Circuit type	/	Open circuit
	Pumping system pressure	MPa	34
	Distributing system pressure	MPa	23
	Mixing system pressure	MPa	14
	Max mixing speed	r/min	40
	Capacity of oil tank	L	600
Other parameters	Max. aggregate diameter/ Inside diameter of delivering pipe	mm	50/Φ150 40/Φ125
	Inside diameter of delivering pipe	mm	φ125/φ150
	Dimensions:length×width×height	mm	6800×2200×2700
	Total weight	kg	7000

Used Concrete Trailer Pumps ZOOMLION HBT80.16.174RSU 7540kg
