CH-100 CONCRETE RECYCLE SYSTEM Concrete Recycler Ready Mix
Reclaimer
The Concrete Recycle System is a compact system that washes, separates and dewaters residual
concrete and discharges the sand and stones separately. The slurry water will be discharged into Agitator mixing tanks, and through the Filter Press System, the plant will get clean water ready for reusing and dry muddy
cakes which realizing a zero waste and zero discharge process.
Ø CONCRETE RECYCLE SYSTEM, MODEL CH-100

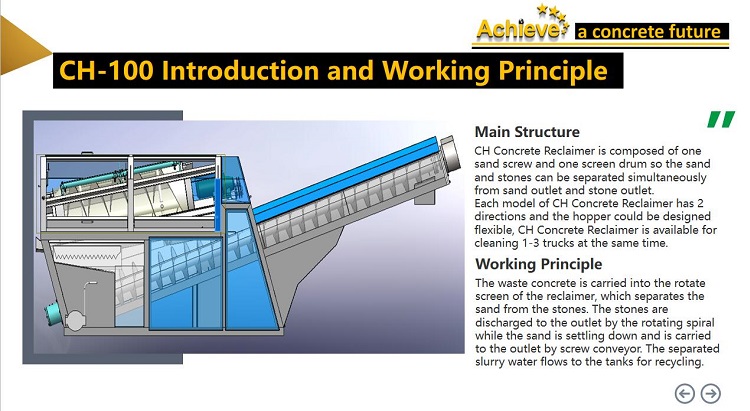

CH-100 Concrete Recycle System is composed of one sand screw and one screen drum so the sand and
stones can be separated simultaneously from sand outlet and stone
outlet.
CH-100 is heavy-duty designed and is greatly welcome by medium
ready mix companies by its impressive separation effect and
reliable performance.
CH-100 has 2 directions and the hopper could be designed flexible, CH-100 is available for cleaning 1-2 trucks at the same time and is possible to switch to manually wash
or automatic wash in the PLC easily according to different
conditions and operating habits.
Ø Product Features
1. High duty design, long service life.
2. The recycled sand & stones are very clean and contains little
water.
3. Simple Operation & Maintenance
4. Small space & Flexible Design
| No. | Parts name | Specifications | Qty |
| 1 | Concrete Reclaimer | CH-100 | 1 |
| 2 | Water System | Hopper Pump | 1 |
| | Truck Mixer Pump | 2 |
| | Reclaimer Pump | 1 |
| | Pump Pipe Set 2’ | 4 |
| 3 | Electronic Control System | High voltage cabinet | 1 |
| | PLC control | 1 |
| | Electrical elements | 1 |
| | 3*2.5+1 wiring cable | 1 |
| | 0.75mm2, 2 cores signal wire | 1 |
| | Alarming Indicator | 3 |
| | Button Switch & Boxes | 3 |
| | Setting Screw (M10*70) | 3 |
| 4 | Pipeline Parts | Pipeline (with thread) 2’ | 60m |
| | Bend ( with thread) 2’ | 18 |
| | Welding Bend 2’ | 8 |
| | Welding Flange 2’ | 9 |
| | Flange rubber pad 2’ | 12 |
| | Straight Union (with thread) 2’ | 5 |
| | Hexagon Screw M10*30 | 4 |
| | Truck Washing Pipe Set 2’ | 3 |
| | Hexagon Screw(with pad) M10*60 | 12 |
| | Hexagon Screw(with pad) M14*60 | 8 |
| 5 | Parts for free | Hand Chain Hoist (1t-6m) | 1 |
| | Pump Hanger | 1 |
| | Steel wire ropeφ8 | 10m |
| | Steel wire rope cappel Y-8 | 9 |
| | CH-100 Sealing Parts( Backup) | 1 |
