HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m

Product Categories

Achieve Innovations (Changsha) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 38m
Brand: Achieve
Price: 2000 USD

Add to Cart

HZS35 concrete batching plant Product configuration:

1. mixer

Achieve HZS35 ready mixed concrete batching plant Configure the JS750 mixer,

Double horizontal shaft forced mixing mixer.

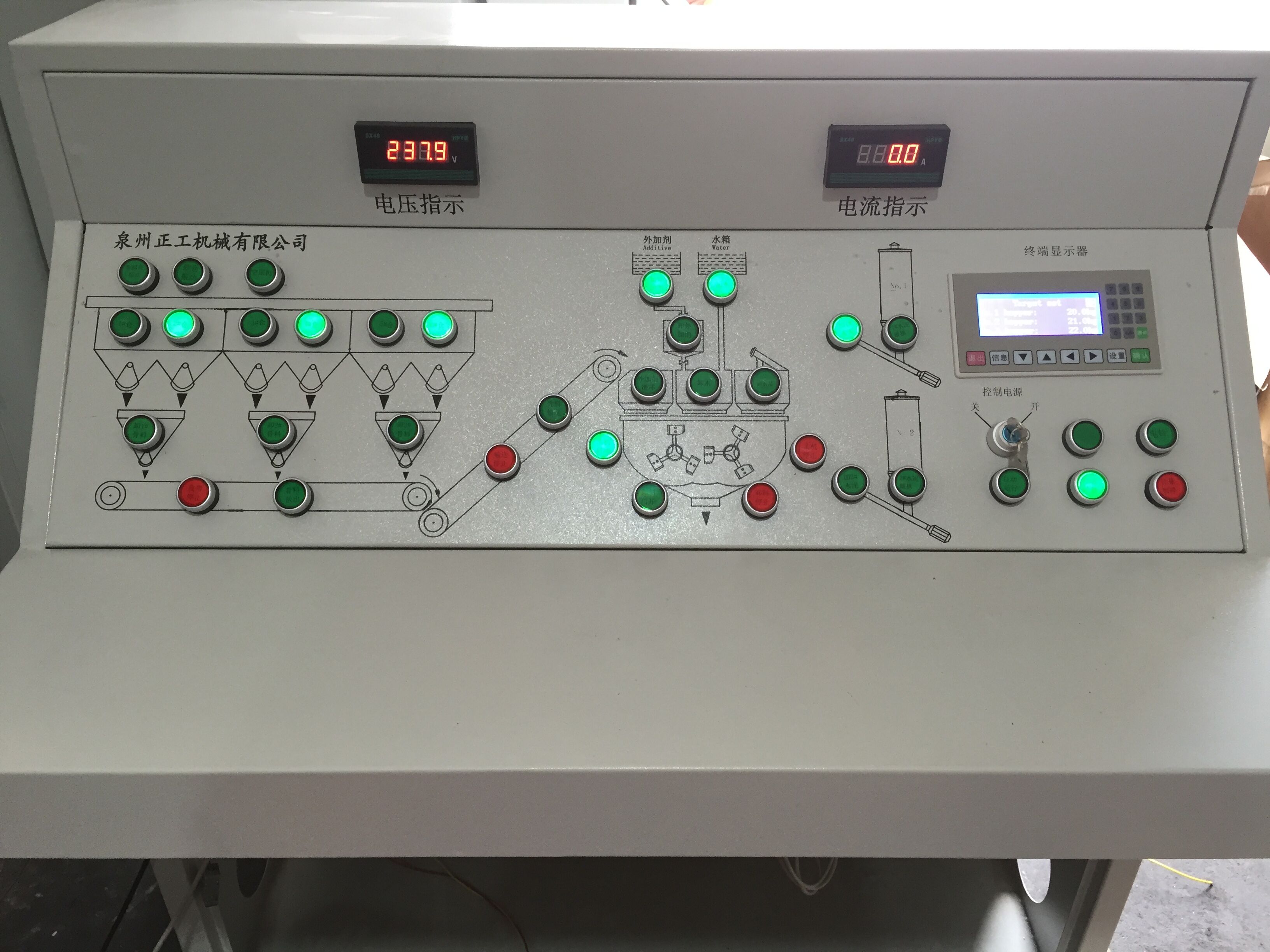

2. Control system

Achieve HZS35 batching plant Configure the Manual operation panel.

3. Aggregate conveyor

Achieve HZS35 bucket lift type concrete batching plant ,adopts the bucket lifting system.

4. Aggregate batching machine

Achieve stationary concrete batching plant HZS35 aggregate batching machine

consists of: aggregate silo, weighing hopper, aggregate conveyor, sensor, etc.

5. Bolted Cement SILO

6. cement screw conveyor

HZS35 concrete batching plant basic Specification:

HZS35 concrete batching plant quotation and main Configuration
No.	Name		specifications	Brand	QTY	UNIT
1	JS750 double horizontal shaft mixer, 3.8m discharge height(pneumatic door)	mixer	JS750	Achieve	1	set
		main gearbox		Achieve	1	set
		main motor	30Kw	Zhengzhou Deshengxiang	1	set
		lift gearbox		Achieve	1	set
		lift motor	7.5Kw	local famous brand	1	set
		Manipulating Fuel Pump		local famous brand	1	set
		sewage pump	3Kw		1	set
		pneumatic door		Aikesi	1	set
		Lining and blade	high-strength alloy	Achieve	1	set
		underframe		Achieve	1	set
		leg		Achieve	1	set
		Aggregate receiving hopper		Achieve	1	unit
		Walking platform		Achieve	3	set
		track		Achieve	1	set
		protective guard		Achieve	1	set
		Ladder		Achieve	1	set
2	PLD1200 two bins batcher	belt conveyor	width 500	Achieve	3	set
		steel frame		Achieve	1	set
		conveyor motor	4Kw	yuxing	3	set
		scale hopper	1.2m³	Achieve	1	unit
		aggregate bin	2.5m³	Achieve	2	unit
		leg		Achieve	4	set
		weighing sensor	1000Kg	keli	3	unit
3	Bucket lift	air cylinder		AKS	1	set
4	screw conveyer	9m	Φ219mm	Domestic reducer	3	set
5	Cement measuring system	scale hopper	400Kg	Achieve	1	unit
		steel frame		Achieve	1	unit
		sensor	500Kg	keli	3	unit
		Pneumatic Butterfly Valve	Ф250mm	boerte	1	unit
		pneumatic component		aikesi	1	set
		air compressor	0.25	shanghai jingbao	1	set
		solenoid valve			1	set
		Oil water separator			1	unit
		ball valve			1	unit
		connection and pipeline.			1	set
6	silo	electric dust removal	50T	Customer optional	2	set
