HGY36S-4R Concrete Placing Boom 25Ton 30kw

Ask Lasest Price
Brand Name :	Achieve
Supply Ability :	5 Unit/Units per Month
Price :	$100,000.00 - $110,000.00/Units

Add to Cart

Product Details
Company Profile

HGY36S-4R Concrete Placing Boom 25Ton 30kw

HGY36S-4R Concrete distributor Concrete Placing Boom

The counterbalance valve provides a locking function as an added safety measure.

The use of double-wall, wear-resistant delivery pipe has improved the service life up to 30,000-50,000m3.

This is 3-5 times longer than the life of ordinary pipe.

To enhance adaptability, the telescoping supports, designed by Sany, have an independent climbing system to accommodate installation in an elevator shaft or on curved walls of varying dimensions.

Cylinder jacking is used to 'climb' the placing booms within elevator shafts. The use of a fully automatic, 'stepless', lifting climbing frame with double electric hoists improves efficiency and safety by reducing the labor requirements of workers.

HGY36S-4R Concrete Placing Boom 25Ton 30kw

Technical Specifications
Model of Placing Boom			HGY36S-4R		HGY36P-4R	HGY36SC-4R	HGY36PC-4R
Performance	Max. Radius (m)		36
	Free Standing Height,Slewing Range		22.7m,400°
	Working temperature(℃)		0~60℃
	Counter weight(kg)		/			2930
	Total weight(kg)		25000			27930
	Supply power to equipment		380V/50Hz
Electric motor	Motor Model		Y2-200L-4
	Power(kw)		30
Hydraulic system	System pressure(MPa)		32
	Flow(L/min)		34	47		34	47
	Oil tank capacity(L)		280
Control mode			(Cable+Radio) remote control
Clearing mode for concrete pipe			Water clear / Dry clear
Section of tubular column (m×m)			0.75×0.75
Arm(Booms)	Boom model		fully hydraulic foldable arms
	Delivery pipeline diameter		DN125mm
	Length of end hose		DN125mm ×3000mm
	The first section	Length(m)	12.3
		Articulation	-2.5°~82.5°
	The second section	Length(m)	7.9
		Articulation	0°~180°
	The third section	Length(m)	7.9
		Articulation	0°~180°
	The forth section	Length(m)	7.9
		Articulation	0°~180°

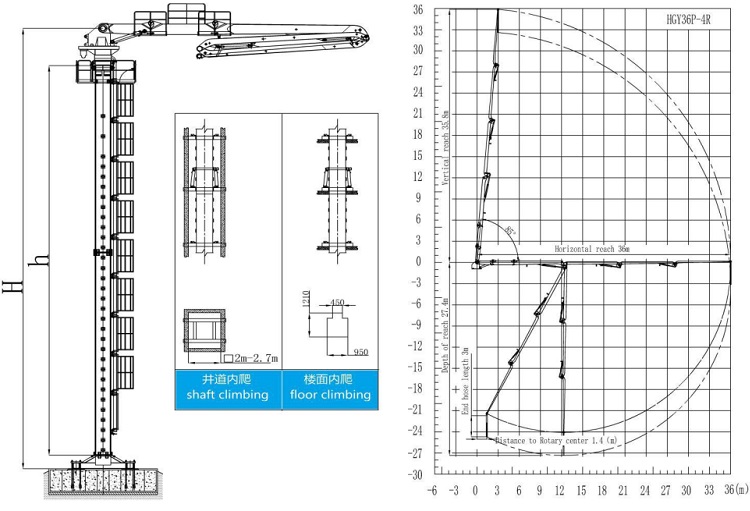

Climbing	Climbing Mode		Cylinder Jack Lifting
	Internal Climbing Step Distance(m)		0.52
	Floor Frame		Hole Prepared in Floor
	Shaft Frame		Size of Climbing Shaft : 2.0m-2.7m
	Min. Space Between Internal Climbing Frame	Climbing(m)	3
		Placing Concrete(m)	6
		Rest(m)	6
