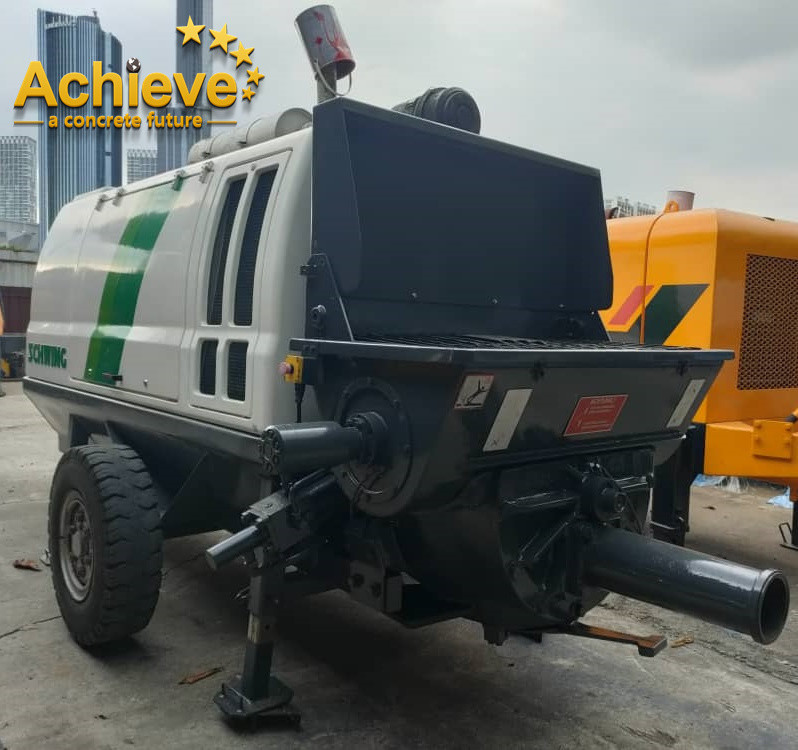

    Second Hand Concrete Static Pump Schwing SP1800 German Made

    Ask Lasest Price
    Brand Name : SCHWING
    Model Number : SP1800
    Price : USD26,000 FOB
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    Second Hand Concrete Static Pump Schwing SP1800 German Made

    Usage/ApplicationBuildings
    Model Name/NumberSP 1800 D
    Brand/MakeSchwing Stetter
    Dead Weight Incl Oil Fuel5200 Kg
    Engine / Motor Capacity81 kW
    Nominal Speed2100 rpm
    Pumping Cylinder Diameter x Stroke200 x 1600 mm
    Differential Cylinder DrivePiston and Rod Side
    Maximum Strokes14 (Piston Side),24 (Rod Side) Per Minute
    Maximum Concrete Pressure112 (Piston Side),62 (Rod Side) bar
    Capacity of Charging Hopper600 Litres
    Delivery Line150 mm
    Maximum Theoretical Concrete Output42 (Piston Side),73 (Rod Side) m cube/hr.

    All SCHWING concrete pumps have an output governed hydraulic pump that ensures that the prime mover is never overloaded, the automatic governor splits available engine output optimally into oil flow and oil pressure and allows the concrete pump to run at the best possible output level. At the same time, the manual de-stroker valve can be used to set the pump to a required fine tuning to set stroke rate and output independent of the automatic governor. The open circuit, combined with the SCHWING designed “Hi-flow” spool block ensures minimum heat generation in the hydraulics, therefore there are negligible output losses and minimum stress on the hydraulic components.
