Model

CR-150

Screening Capacity (m3/h)

20

Dia. of Sand & Stone (mm)

<40

Total Power of Motors (kw)

7.5

Weight (t)

7

Overall Size(mm)

7500*2200*2800

Qty. of Mixer Trucks

<40

No. of Washing Stinger

1-3

Electric Control System

PLC Auto Control

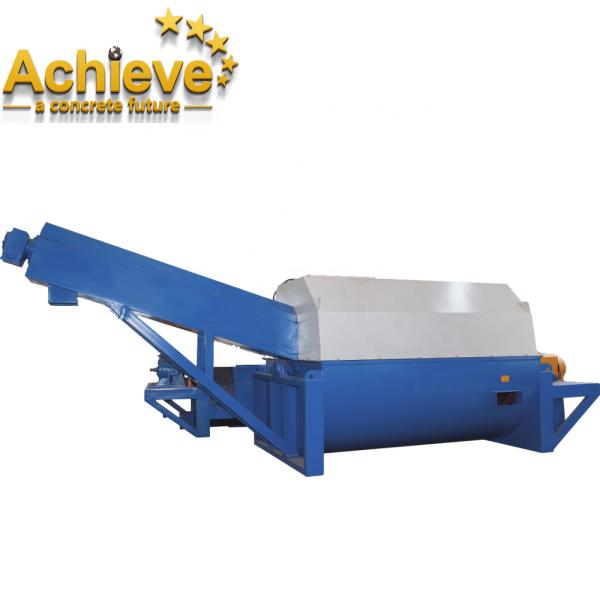

CONCRETE RECLAIMER CR-150

Item

Description

Specification

1. Concrete reclaimer system

Reclaimer CR-150

L7500mm*W2200mm*H2800mm

Gear motor

11.5kw

hopper

Available for 3 trucks

hopper connector

L800mm

Alarming Indicator

LTE-1081 DC24V

2. Truck Washing Pipelines

Truck Washing Pipe Set

2‘

Truck washing start Button

3. Water pump

Hopper pump

WQ20-25-3

Truck washing pump

WQ20-25-3

Screw bolt

M12*60

Pump Pipe Set

2´

4. System pipelines

Pipeline (with thread)

2'

Bend ( with thread)

2'

Welding Bend

2'

Welding Flange (with pad)

2'

T joint

2'

Outside Thread

2'

Straight Union

2'

5. Electric Control System

PLC+Touch Screen

Delta

Other electrical elements

Scheinder

Screw bolt

M10*70

Wiring Cable

3x4+1

Wiring Cable

3x2.5+1

Signal Wire

0.75mm2,2core

6. Others

Pump Hanger

Steel wire rope

φ5

Steel wire rope cappel

Y-6

Bellows

30-40

Ribbon

350

Hand Chain hoist

1t-6m

Sealing Tape

Angle Iron

50*50

Out Hexagon Screw

M10*30

Screw Bolts

M12*40~45

Welding Rod

Welding gloves
